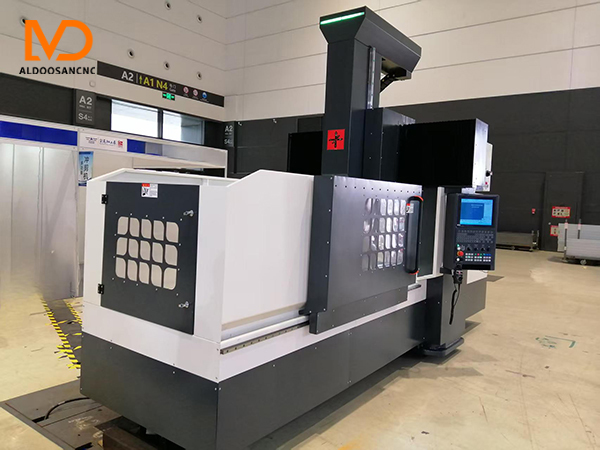

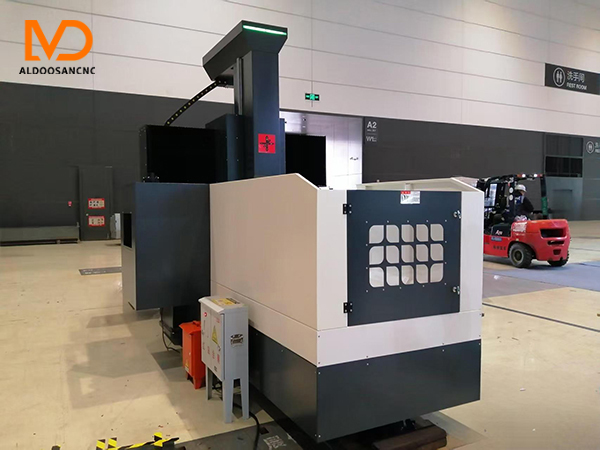

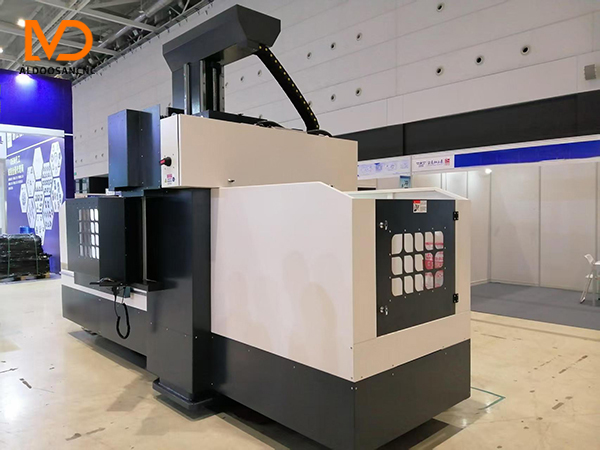

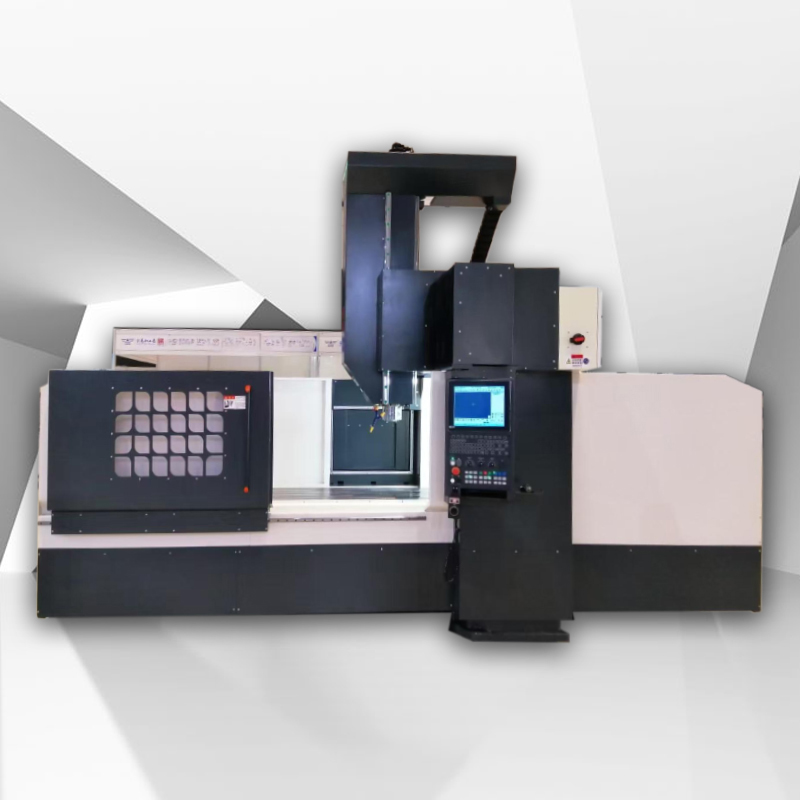

ALGMC1311 CNC Gantry Milling Machine

The ALGMC1311 is a high-rigidity, high-precision fixed beam gantry machining center, built with a resin sand casting structure for excellent stability and vibration resistance. Its worktable measures 1300×1100 mm, capable of handling large and complex workpieces. XYZ axis travels are 1300×1100×500 mm, equipped with high-precision roller linear guideways and high-torque servo motors for fast response and accurate positioning.

This machine supports multiple operations including milling, drilling, and tapping, allowing multi-process machining in one setup, significantly improving production efficiency. It also features a user-friendly interface and automatic lubrication system for convenient operation and maintenance.

Key Features:

l Rigid structure for heavy-duty cuttin

l Precision roller linear guideways + high-torque servo motors for accuracy

l Large worktable to accommodate large complex workpieces

l Multi-process machining capability, enhancing efficiency

l Automatic lubrication system and user-friendly interface

Typical Application Industries:

l Mold Manufacturing: precision injection molds, die-casting molds, large composite molds

l Automotive Industry: engine housings, chassis components, gear housings

l Aerospace: aluminum alloy components, support structures, precision parts

l Construction Machinery: hydraulic parts, large metal structural components

Conclusion:
With its high rigidity, precision, and multi-process capability, ALGMC1311 is an ideal solution for machining large and complex components in mold manufacturing, automotive, aerospace, and construction machinery industries, effectively enhancing production efficiency and product quality.

Product Parameters：
